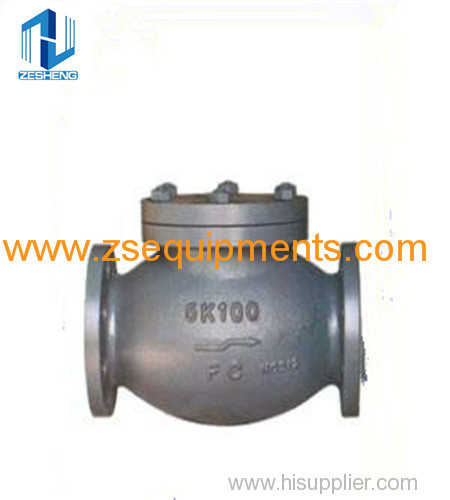

Marine Swing Check Valve
| Price: | 1.0 USD |
| Payment Terms: | T/T,L/C,WU,Paypal,Money Gram |
| Place of Origin: | Liaoning, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Design Standard: JIS F7358-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa~0.4Mpa
Flange size as per JIS B22
Marine Cast Iron Lift Check Globe Valve JIS F7358 5K:
Design Standard: JIS F7358-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa~0.4Mpa
Flange size as per JIS B2220 – 5K
Main Material:
1-Body: Cast Iron (FC200)
2-Bonnet: Cast Iron (FC200)
3-Disc: Bronze (BC6)
4-Seat: Bronze (BC6)
5-Gasket: non-asbestos
Main Size List(mm):
| DN | L | D | C | No of Bolt Hole | Bolt Hole Diameter | t | H | |
| 50 | 210 | 130 | 105 | 4 | 15 | 16 | 107 | |
| 65 | 250 | 155 | 130 | 4 | 15 | 18 | 124 | |
| 80 | 280 | 180 | 145 | 4 | 19 | 18 | 129 | |
| 100 | 340 | 200 | 165 | 8 | 19 | 20 | 146 | |
| 125 | 410 | 235 | 200 | 8 | 19 | 20 | 166 | |
| 150 | 480 | 265 | 230 | 8 | 19 | 22 | 188 | |
| 200 | 570 | 320 | 280 | 8 | 23 | 24 | 212 |
Lead Time: Around 35 Days
Certificate: ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
